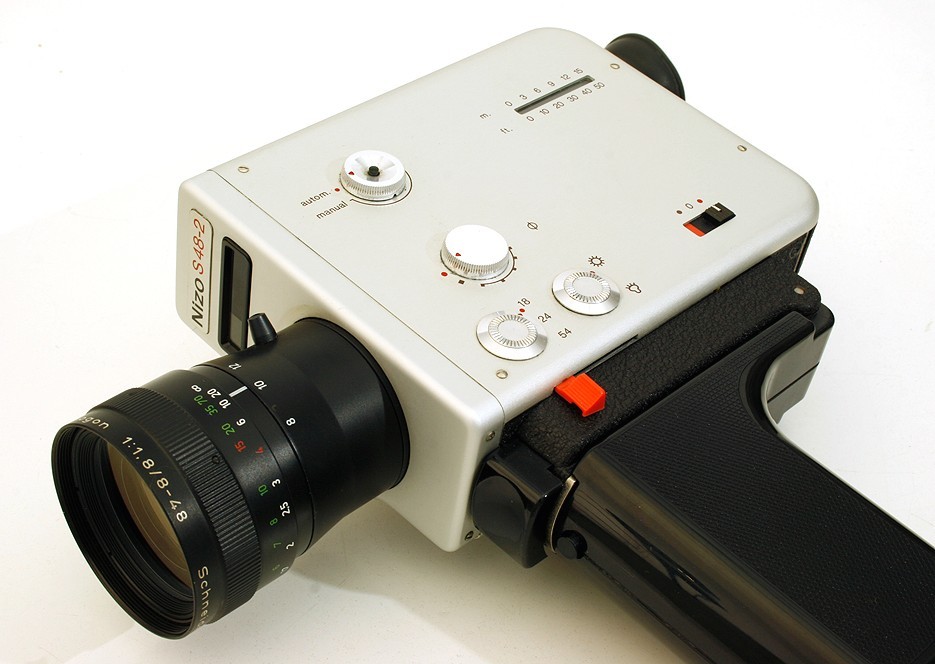

Braun Nizo S48-2 ^ 1.8/8-48mm ^ Super 8 Movie Camera ^ tested & working

marketed in 1968

silent super 8 cartridge

lens: Schneider-Kreuznach Variogon f: 1.8 \ F: 8-48 mm

zooming ratio: 8x

focusing: manual

rangefinder: split image

macro focusing: yes

zooming: auto with 2 speeds and manual

filter size: 49 mm

viewfinder: single-lens reflex with adjustable eyepiece

viewfinder information: exposure meter

exposure: auto and manual exposure control; TTL EE

film speed: auto between 10/16 and 100/160 ASA (daylight/tungsten)  (1)

ASA notching: no pin = slide

backlight control: yes

CCA filter: built-in 85A filter, with filter control swicht

filming speed: 18, 24, 54 fps, single frame

shutter opening angle: 150 degrees, variable from 0º to 150º

fading: auto fade-in/fade-out

lap dissolve: yes

interval timer: 1/6 to 60 second intervals

time exposure: yes

sound: no

remote control socket: yes

cable release socket: yes

movie light socket: no

synchronized flash socket: yes

handle: retractable, chamber for penlight batteries

film drive motor: DC micromotor

battery checker: yes

power source: 6 x AA batteries \ 2 x PX625 button cells for light meter

weight: 1320 g

dimensions: 46 x 118 x 230 mm

tripod socket: 1/4" + 3/8"

made in Germany by Braun Nizo

• (1) 10/16, 16/25, 25/40, 40/64, 64/100, 100/160
